Static Seal Gland Design

There are three types of static seals:

  • Face (Flange) static seal
  • Radial (Piston) static seal
  • Crush static seal

A static seal is characterized by the absence of relative motion between sealing surfaces, or between the seal surface and a mating surface.



Static face seal applications: chamber lid seal, slit valve.

static face seal applications

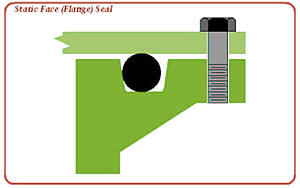

flange seal diagram



Static radial (piston) seal applications: ISO KF flange, filters.

static radial seal applications

piston seal diagram



Static crush seal applications: gas feed through, quartz tank.

static crush seal applications

crush seal diagram
